Lightway 3

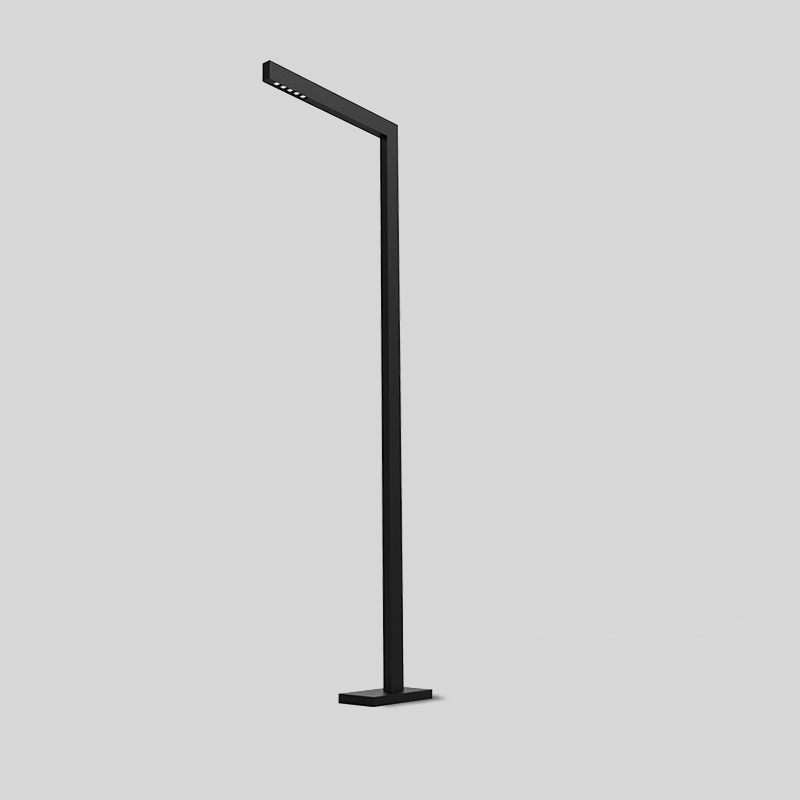

Floor Lamp - Floor Standing
The dash floor lamp can generate a flawless square distribution ideal for various lighting applications. This luminaire combine high-quality lighting performance with minimalistic trimless design.
The dash floor lamp specially-designed reflectors of complex micro-faceted surfaces ensure an even color mixing and ultimate visual comfort (glare free).

• Clean square light distribution from 25mm round aperture reflectors. The optimal beam angle over field angle ratio offers a highly-uniform horizontal surface
• Flexibility of mounting height with 3 beam angles
• Homogeneous color mixing within one reflector
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, floor standing stone, concrete, metal or wood surfaces.
  • Width of 35mm, height of 65mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output from 350lm to 1800lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission square beam: 36°, 50° and 60°.

Polar Curves
polar_curves
Narrow Beam, 36° / LOR: 70.3%
polar_curves
Medium Beam, 50° / LOR: 90.4%
polar_curves
Wide Beam, 60° / LOR: 88.5%

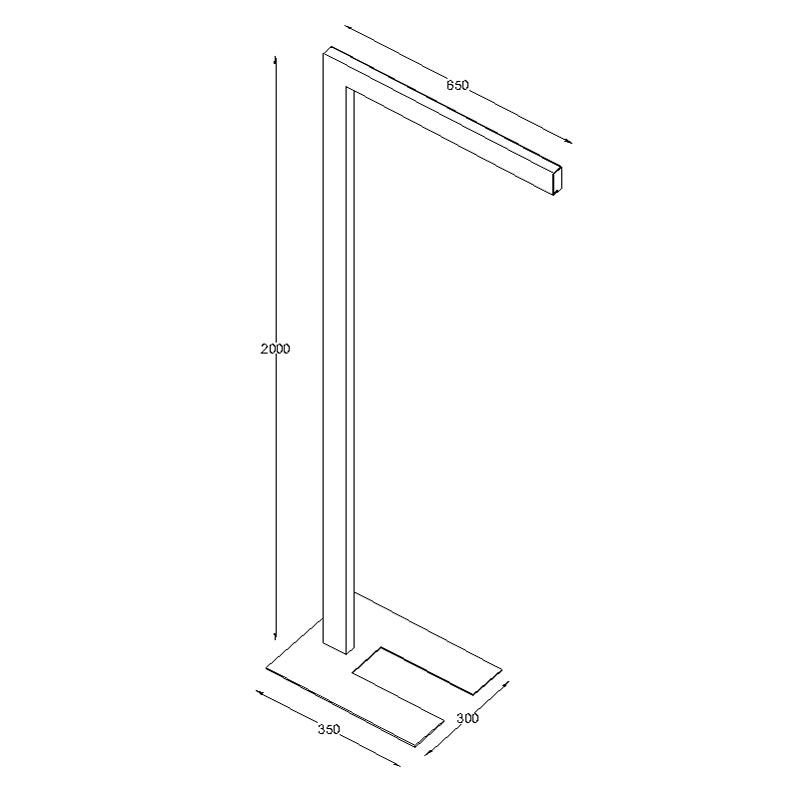

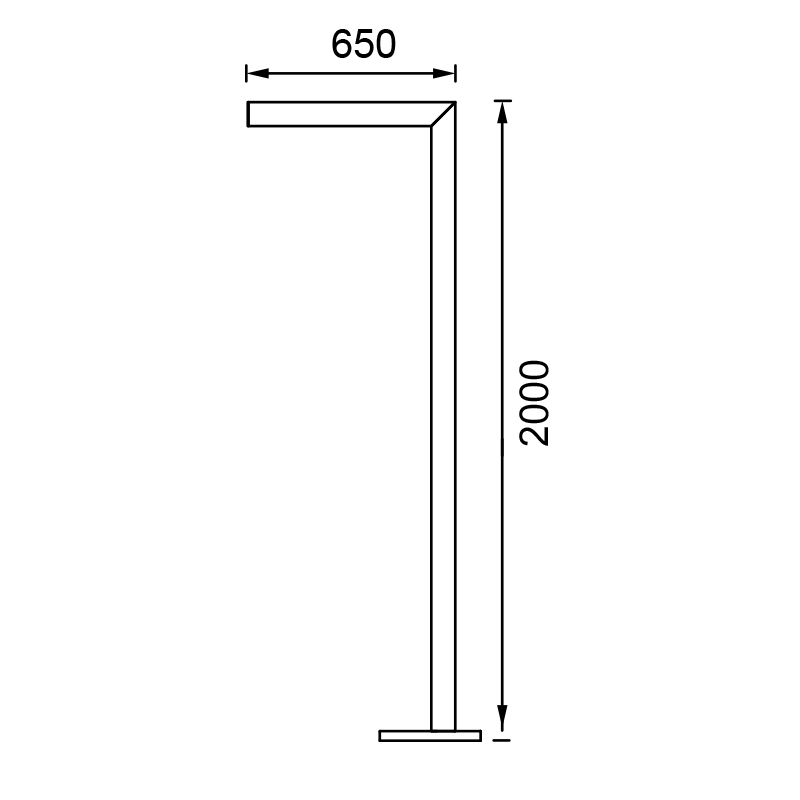

Section Drawing
section_drawing
