Lightway 3

Opal - Recessed With Trim
The Lightway 3 PPMA Opal diffuser is part of a configurable system of linear LED luminaires providing flexible solutions for all indoor applications.
This common diffuser offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
• Superior optical transmission with no visible LED hotspots. Perfect Lambertian distribution for a soft light effect
• Wide, even levels of illumination
• High angle distribution to illuminate adjacent walls
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, recessed with trim in gypsum, metal or wood surfaces.
  • Width of 35mm, height of 65mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 600lm to 1650lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Polar Curves
polar_curves
LOR: 61.7%

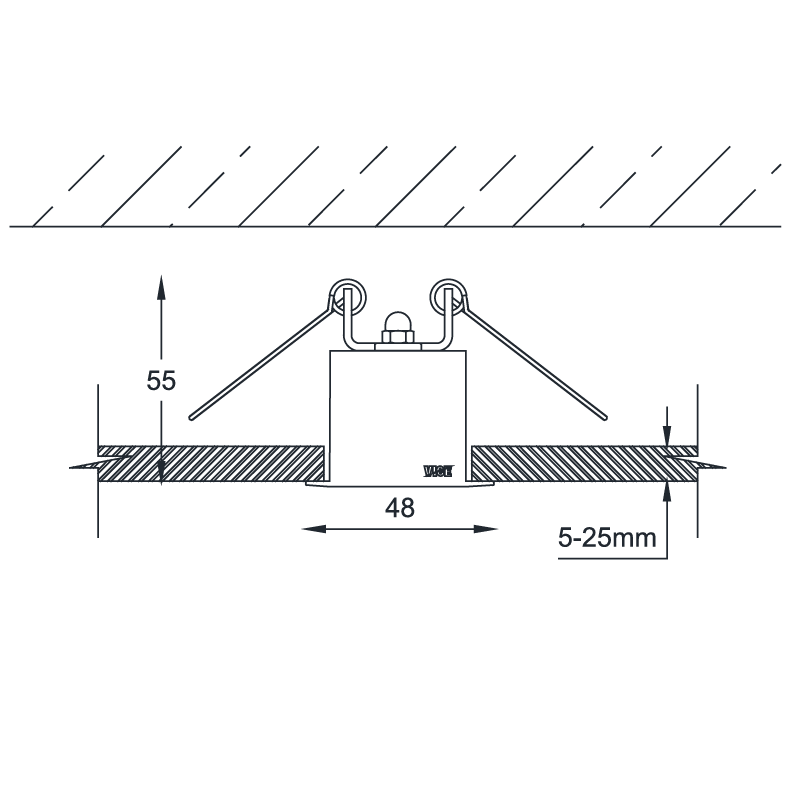

Section Drawing
section_drawing
