Lightway 5

Opal - Surface Mounted
The Lightway 5 PMMA Opal diffuser is part of a configurable system of linear LED luminaires providing flexible solutions for all indoor applications.
This common diffuser offers powerful lighting and excellent light transmission with high diffusion and homogeneity.
•  Superior optical transmission with no visible LED hotspots. Perfect Lambertian distribution for a soft light effect
•  Wide, even levels of illumination
•  High angle distribution to illuminate adjacent walls
•  Great color mixing capability
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 51mm, height of 80mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 950lm to 4200lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Polar Curves
polar_curves
LOR: 63.8%

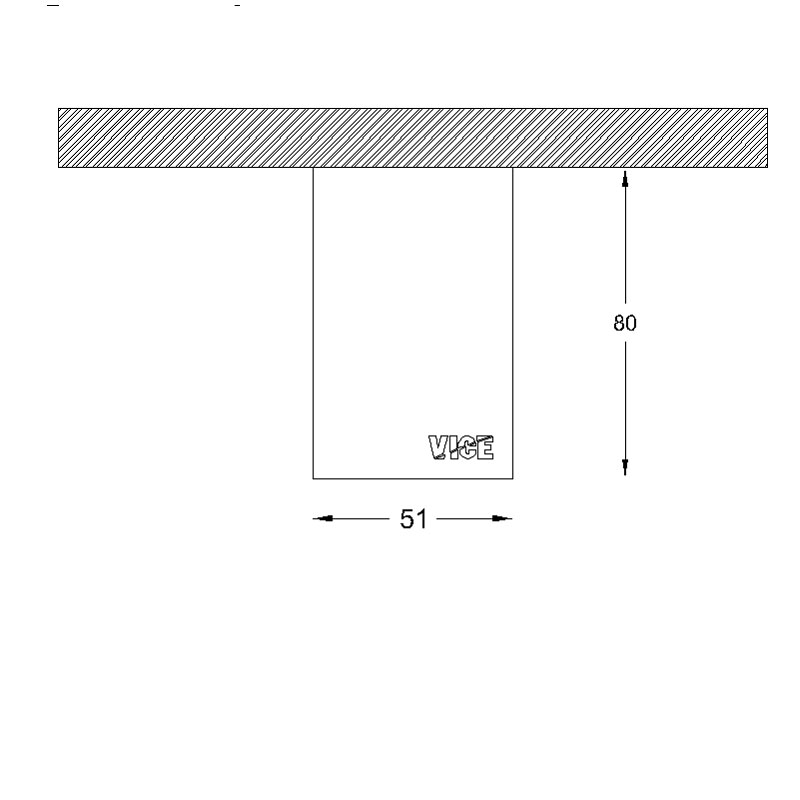

Section Drawing
section_drawing
