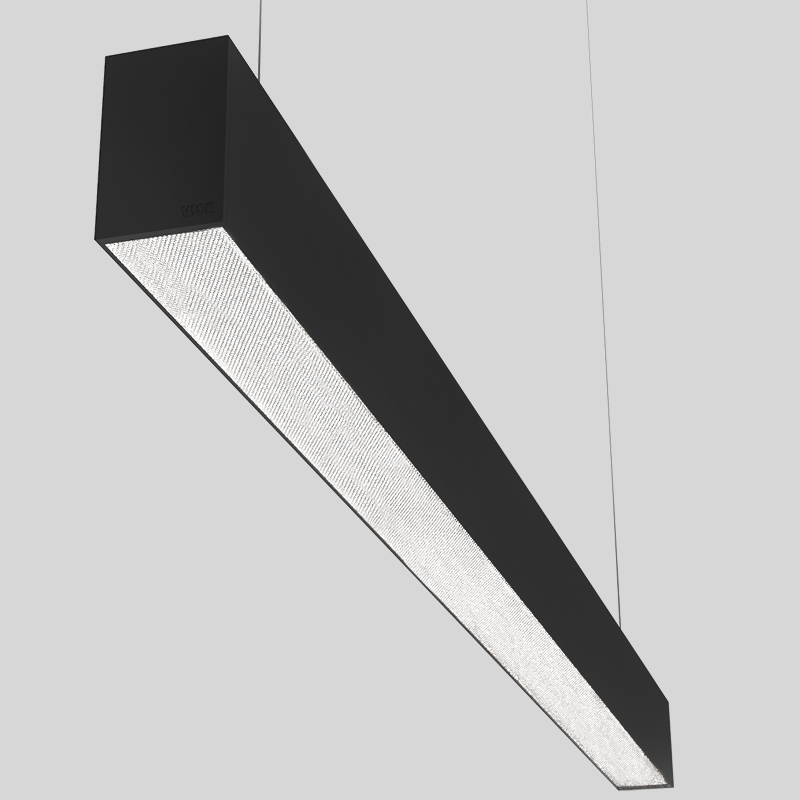

Lightway 6

Diamond Prism - Pendant Direct / Indirect
The Lightway 6 Direct/Indirect linear system offers numerous combinations of optics and output options. A well-lit ceiling improves the look of the workspace without having to compromise on the efficiency.
The diamond-like prism structure provides an excellent light brilliance and precision with great glare reduction (UGR<19) and superior vertical/horizontal illumination.
• Good glare control (UGR<19). Ideal for the workplace
• High efficiency luminaire: 70% LOR
• Homogeneous glare reduction in all C-levels
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 900lm to 4100lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Direct Polar Curves
polar_curves
LOR: 76.3%
Indirect Polar Curves
polar_curves
LOR: 74.8%
polar_curves
LOR: 75%
Section Drawing
section_drawing
