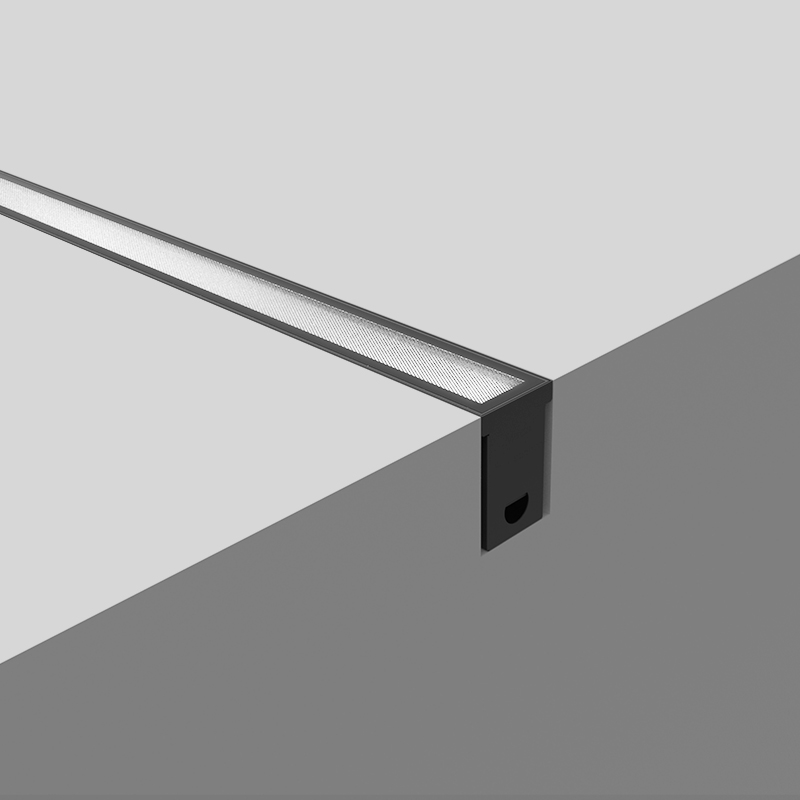

Lightway 6 - Outdoor

Diamond Prism - Inground Deep
The Lightway 6 Inground Diamond Prism is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs. The diamond-like prism structure provides an excellent light-brilliance and precision with great glare reduction (UGR<19) and superior vertical/horizontal illumination.
• Good glare control (UGR<19). Ideal for the workplace
• High efficiency luminaire: 70% LOR
• Homogeneous glare reduction in all C-levels
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 700lm to 3200lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K.
  • Color rendering index CRI 90+.

Polar Curves
polar_curves
LOR: 48.78%
Section Drawing
section_drawing
