Lightway 6

Elliptical Narrow Lens - Pendant Direct / Indirect
The Lightway 6 Direct/Indirect linear system offers numerous combinations of optics and output options. A well-lit ceiling improves the look of the workspace without having to compromise on the efficiency.
The elliptical narrow lens, for direct emission, provides homogeneous vertical surface grazing and works perfectly on high vertical surfaces.
• Wide lateral beam spread for high ceiling applications, over 4m height. Emphasizes contrast effects on textured surfaces
• 5 to 10cm from the edge of fixture to the surface of the wall
• Install to within 45cm of side walls to minimize spill
Build Your Product Spec Sheetdownload
Product Specifications
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, pendant from stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 1000lm to 4450lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Direct Polar Curves
polar_curves
LOR: 82.3%
Indirect Polar Curves
polar_curves
LOR: 74.8%

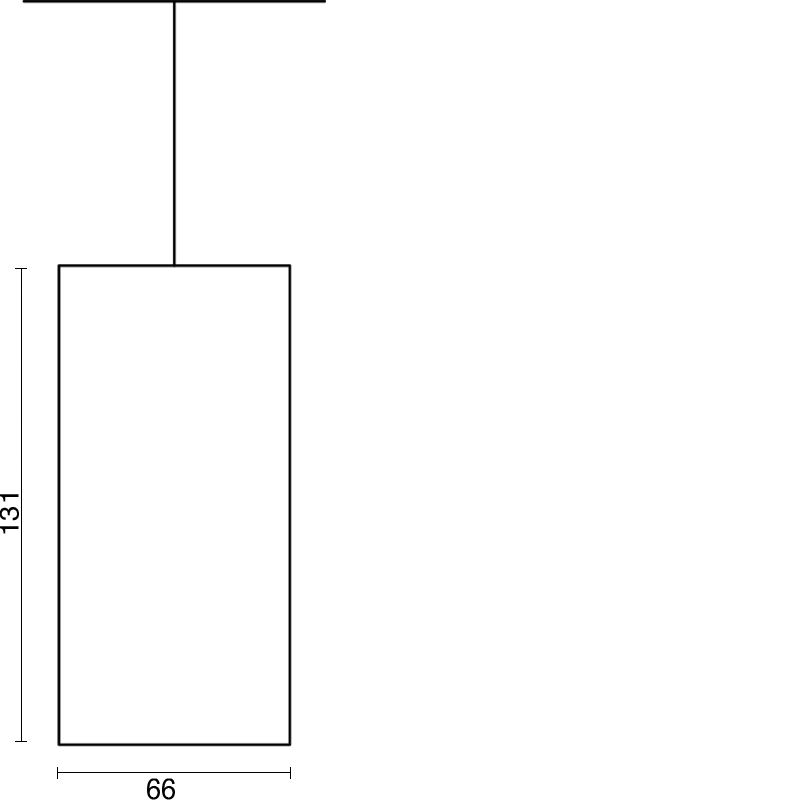

Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult factory for optimal setback according to your project conditions.
