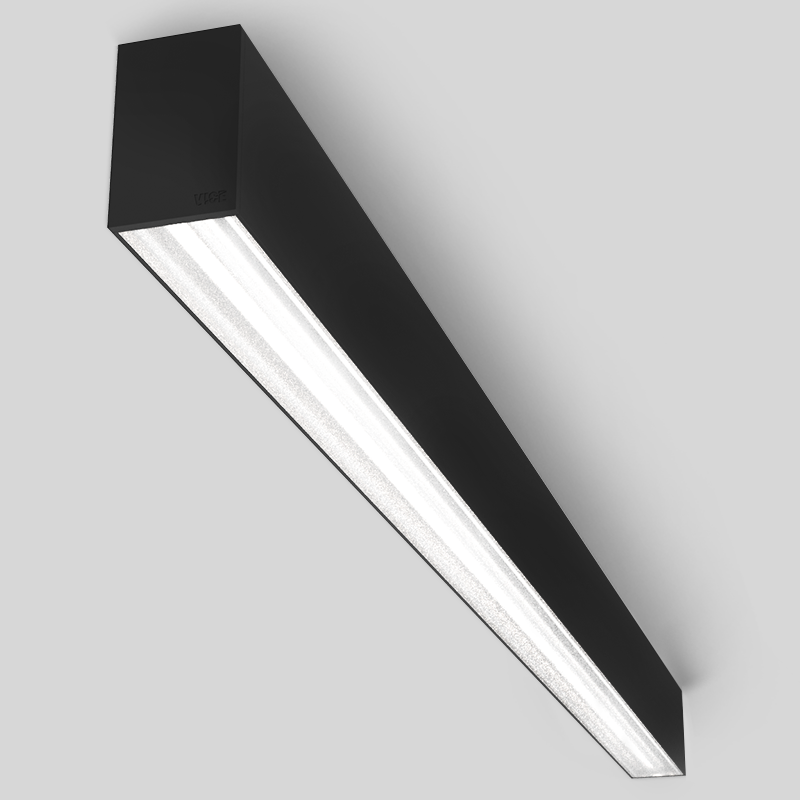

Lightway 6

Elliptical Narrow Lens - Surface Mounted
The Lightway 6 - with its powerful and efficient Elliptical Narrow Lens - provides homogeneous vertical surface grazing and works perfectly on high vertical surfaces for both indoor and outdoor applications.

•  Wide lateral beam spread for high ceiling applications, over 4m height. Emphasizes contrast effects on textured surfaces
•  5 to 10cm from the edge of fixture to the surface of the wall
•  Install to within 45cm of side walls to minimize spill
Build Your Product Spec Sheetdownload
Product Specifications
  • Grazer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 1000lm to 4450lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
product

Polar Curve
polar_curves
LOR: 82.3%
Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult factory for optimal setback according to your project conditions.
