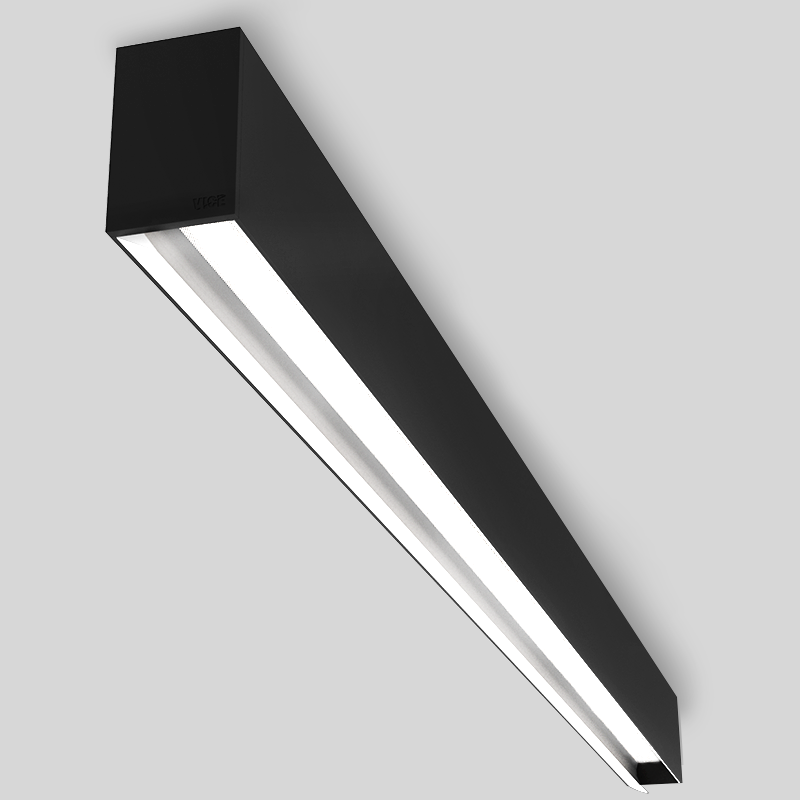

Lightway 6

Kick Reflector - Surface Mounted
The Lightway 6 Kick Reflector provides a smooth distribution of light over vertical surfaces and its reflector helps reduce the aperture apparent size, therefore its surface luminance.
Its aluminum optic with an integrated diffuser is specially designed to reduce glare and increase illuminance levels while providing a uniform light distribution.
  • Exceptionally uniform wall washing, up to top of ceiling plane even when surface mounted
  • Even wall illumination up to 6m
  • Wide lateral illumination with excellent back light shielding
  • Setback ratio of 1:5
  • Continuous row mounting to within 45cm of side walls to minimize unwanted light spillage
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 700lm to 3150lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.

Polar Curves
polar_curves
Kick Reflector

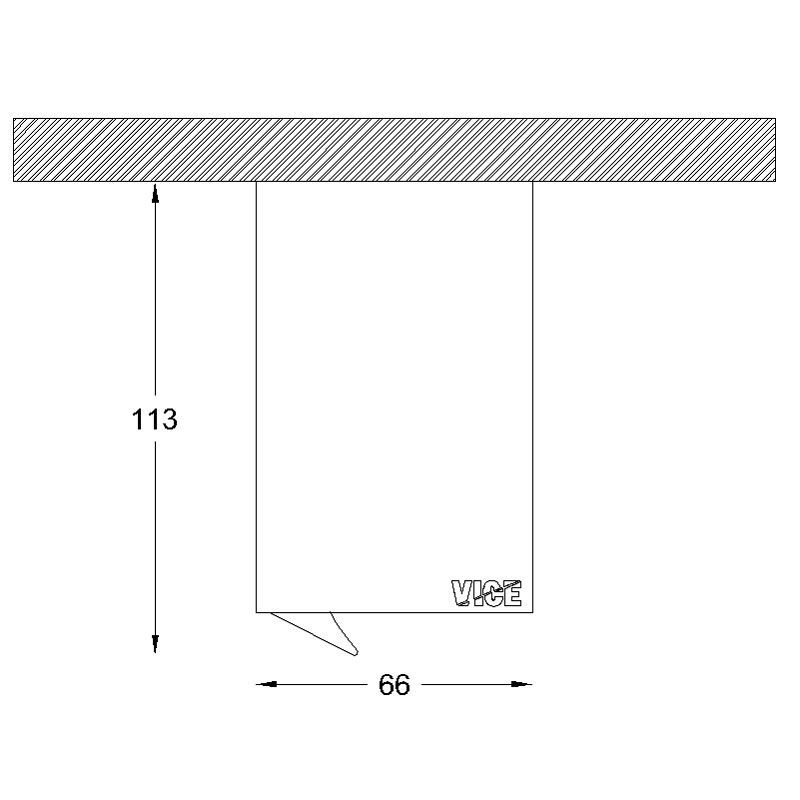

Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
