Lightway 6

Symmetrical Baffles - Recessed With Trim
The Lightway 6 Symmetrical Baffles is designed as a modern replacement for the traditional baffled fluorescent linear fixtures.
The baffles offer excellent glare control and are compatible with a wide array of beam angles.
The specially-designed aluminum optics with high-power LEDs generate a powerful overall lighting effect.
•  Diverse options of beam angles: very narrow, narrow, medium, wide and elliptical
•  Excellent glare control and visual cutoff. Transversal & longitudinal shielding angle (45°)
•  Delivers High levels of light
•  Endless baffle tray colors and finish options for a decorative look
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, recessed with trim in gypsum, metal or wood surfaces.
  • Width of 66mm, height of 103mm and length ranging from 300 to 3000mm with an increment of 300mm.
  • Delivered luminous output per meter from 1000lm to 3650lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission beam: 30°, 45° and 15° x 36°.
  • Cutout: length - 20mm / width 74mm / depth 121.5mm.
Polar Curve
Medium Beam, 30° / LOR: 85.6%
Wide Beam, 45° / LOR: 76.8%
Medium Beam, 30° / LOR: 72.5%
Wide Beam, 45° / LOR: 70.15%
Narrow Beam, 15°
/ LOR: 75%
Elliptical beam 15° x 36° / LOR: 88%
Narrow Beam, 15°
/ LOR: 81.29%
Elliptical beam 15° x 36° / LOR: 78.15%

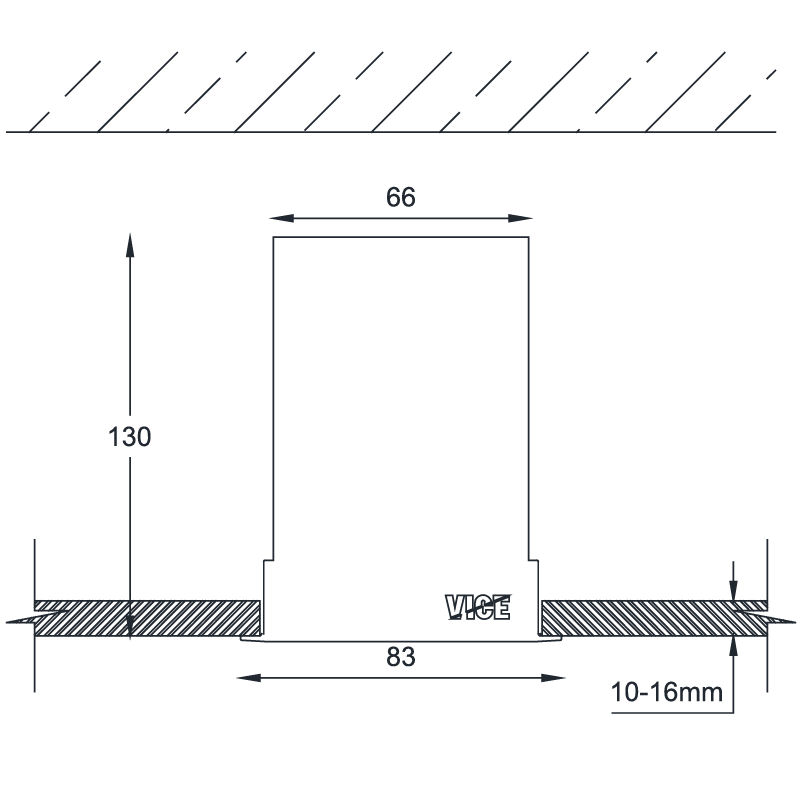

Section Drawing
