Lightway 6 - Outdoor

Symmetrical Baffles - Inground Deep
The Lightway 6 Inground symmetrical baffles is developed for beautiful lighting in harsh environmental conditions. Made from extruded aluminum, this IP67 element benefits from a wide variety of outputs. The baffles offer excellent glare control and are compatible with a wide array of beam angles, generating a powerful overall lighting effect.
• Diverse options of beam angles: very narrow, narrow, medium, wide and elliptical
• Excellent glare control and visual cutoff. Transversal & longitudinal shielding angle (45°)
• Delivers High levels of light
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, recessed deep in concrete surface.
  • Width of 90mm, depth of 133mm and length ranging from 300 to 1500mm with an increment of 300mm.
  • Delivered luminous output per meter from 1000lm to 3100lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K
  • Color rendering index CRI 90+.
  • Light emission beam: 30°, 45° and 15° x 36°.
  • Cutout: length + 3mm / width 93mm / depth 134.5mm.
Polar Curve
Medium Beam, 30° / LOR: 72.4%
Wide Beam, 45° / LOR: 65.4%
Narrow Beam, 15°
/ LOR: 35%
Narrow Beam, 15°
/ LOR: 73%
Medium Beam, 30° / LOR: 35%
Elliptical beam 15° x 36° / LOR: 35%

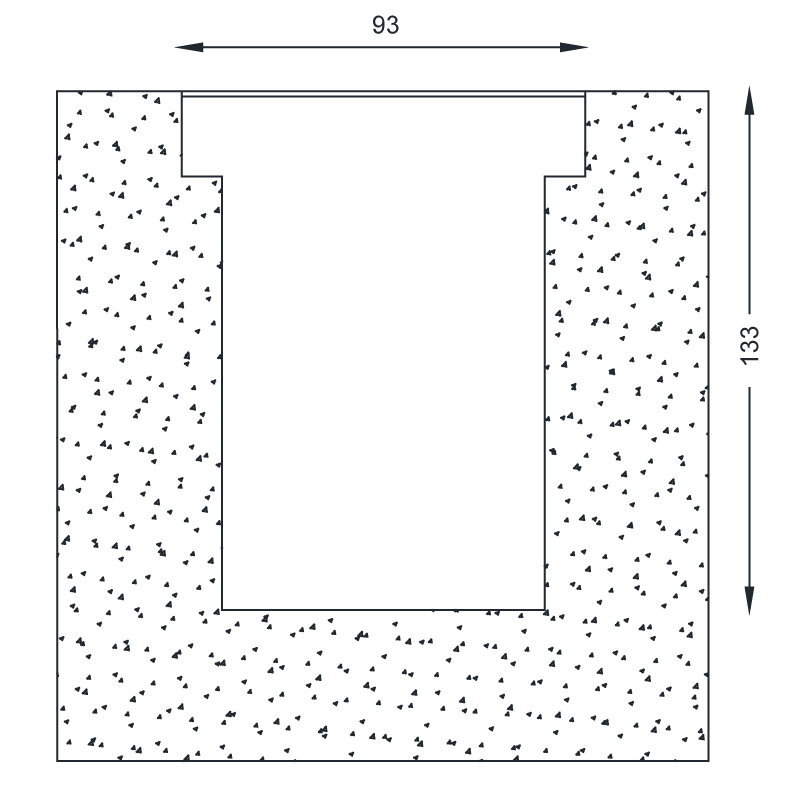

Section Drawing
