Pixelier

Darkway - Surface Mounted

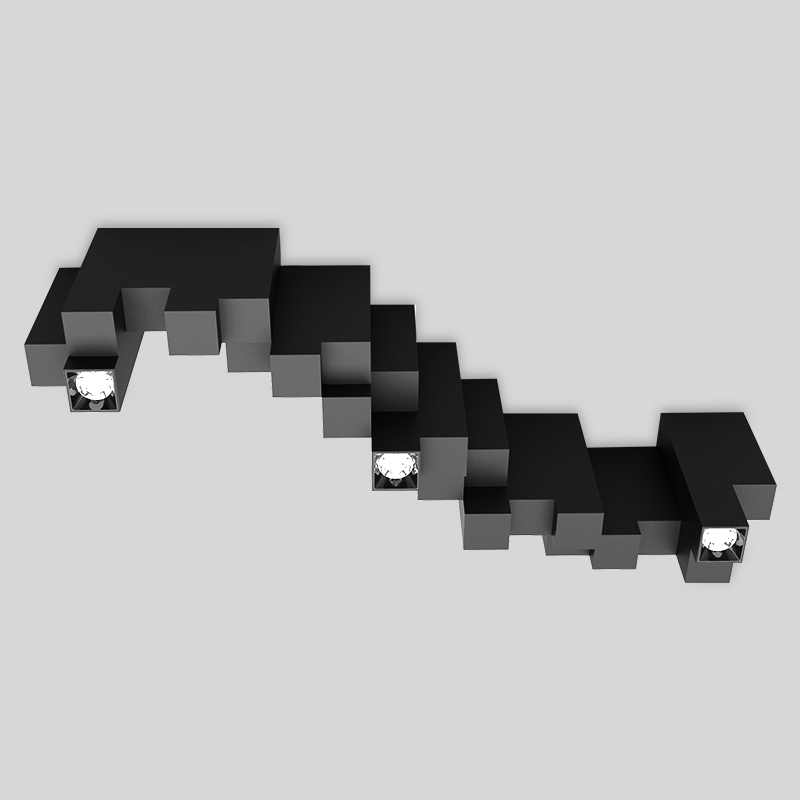

The pixelier modern concept allows arranging the luminaire in any desired shape. A highly configurable system in terms of shape and output performance. This central lighting unit has an aesthetic value, besides its high definition illumination.

•  Flexibility of mounting height with 3 beam angles
•  Homogeneous color mixing within one reflector
Build Your Product Spec Sheetdownload
Product Specifications
  • Ambient lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth, black textured, white textured and custom colors upon request.
  • Used in indoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Base of 40mm and a height of 200mm.
  • Delivered luminous output per meter from 150lm to 1080lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K - 4,000K and tunable white (2,700K - 5,000K).
  • Color rendering index CRI 90+.
  • Light emission square beam: 36°, 50° and 60°

Polar Curves
polar_curves
Narrow Beam, 36° / LOR: 50%
polar_curves
Medium Beam, 50° / LOR: 50%
polar_curves
Wide Beam, 60° / LOR: 50%
Section Drawing
section_drawing
