Zinc - IP65 Bollard

Washer - Surface Mounted Bracket
The bollard marks a breakthrough in horizontal illumination, as it offers a flawless, uniform distribution for all ground surfaces. It is suitable for illuminating defined areas and wide pathways.
This product can be mounted vertically or horizontally and has a tilt adjustment up to 90°, allowing designers to illuminate horizontal, sloped, and vertical surfaces alike.

Product Features:
• Homogeneous color mixing within one reflector
• IP 65
• True wall wash distribution. Vertical light uniformity (1:4)
Product Specifications
  • Washer lighting product with extruded aluminum body.
  • Finishes in black smooth, white smooth, gray smooth and custom colors upon request.
  • Used in outdoor environments, surface mounted on stone, concrete, metal or wood surfaces.
  • Depth of 32mm, width of 83mm and height of 60, 75 and 90cm.
  • Delivered luminous output per meter from 100lm to 200lm.
  • Available Color temperatures (CCT): 2,700K - 3,000K and 4,000K,tunable white (2,700K - 5,000K), and warm dimming (2200K-3000K).
  • Color rendering index CRI 90+.
product

Polar Curves
polar_curves
Cut-Off Washer

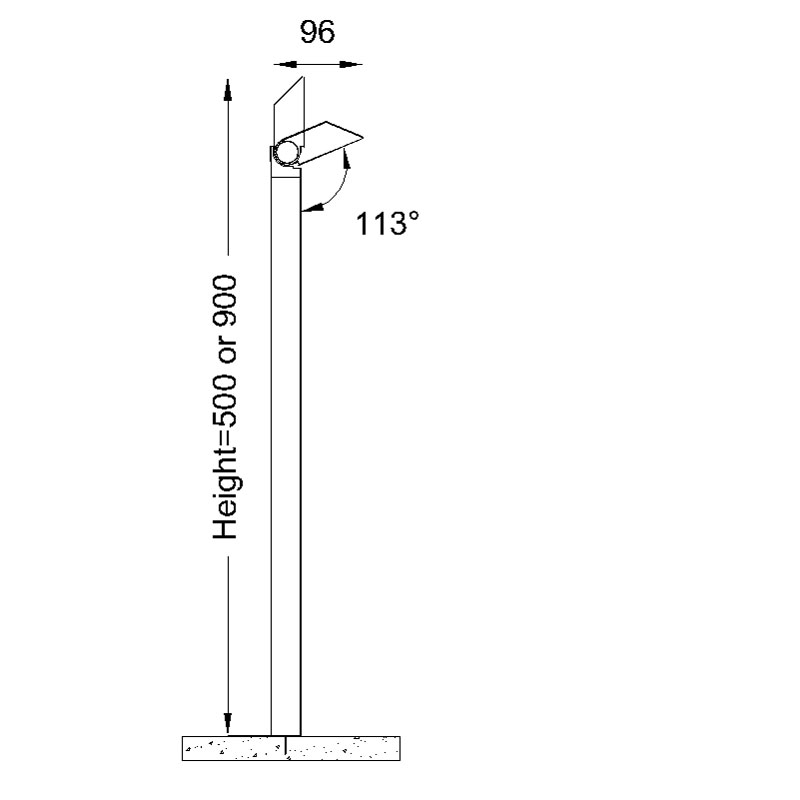

Section Drawing
section_drawing

Mounting Ratio
mounting_ratio

Setback from the wall is defined by wall texture and height. Consult our sales representative for optimal setback according to your project conditions.
